01.

Our Product

Polyurethane Mixing Machinery

02. Low Pressure Range

The Rim-Mix range of low-pressure metering machines represents a major advancement in low-pressure mixing technology and is available
in a wide range of outputs to cover all applications.

Rim-Mix Series

The Rim-Mix series has been designed to ensure maximum reliability, excellent mixing capability and metering accuracy.
The controls have been designed with the operator in mind for simple, easy operation and maintenance procedures.

Customisation

We specialise in fully customised foaming systems tailored to your needs. From concept to completion, we work with you at every step to design a solution that fits your process, capacity, and operational goals.

03. Machine Sizes

C02

  • 0.2 to 0.6 litres/min at 1:1 ratio
  • 40L Polyol Tank
  • 40L Isocyanate Tank
  • 18L Solvent Tank

C12

  • 3.5 to 14.2 litres/min at 1:1 ratio
  • 100L Polyol Tank
  • 100L Isocyanate Tank
  • 18L Solvent Tank

C25

  • ?.? to ?.? litres/min at 1:1 ratio
  • 100L Polyol Tank
  • 100L Isocyanate Tank
  • 18L Solvent Tank

C60

  • 15.2 to 60.8 litres/min at 1:1 ratio
  • 100L Polyol Tank
  • 100L Isocyanate Tank
  • 18L Solvent Tank

Other sizes are available depending on the application.

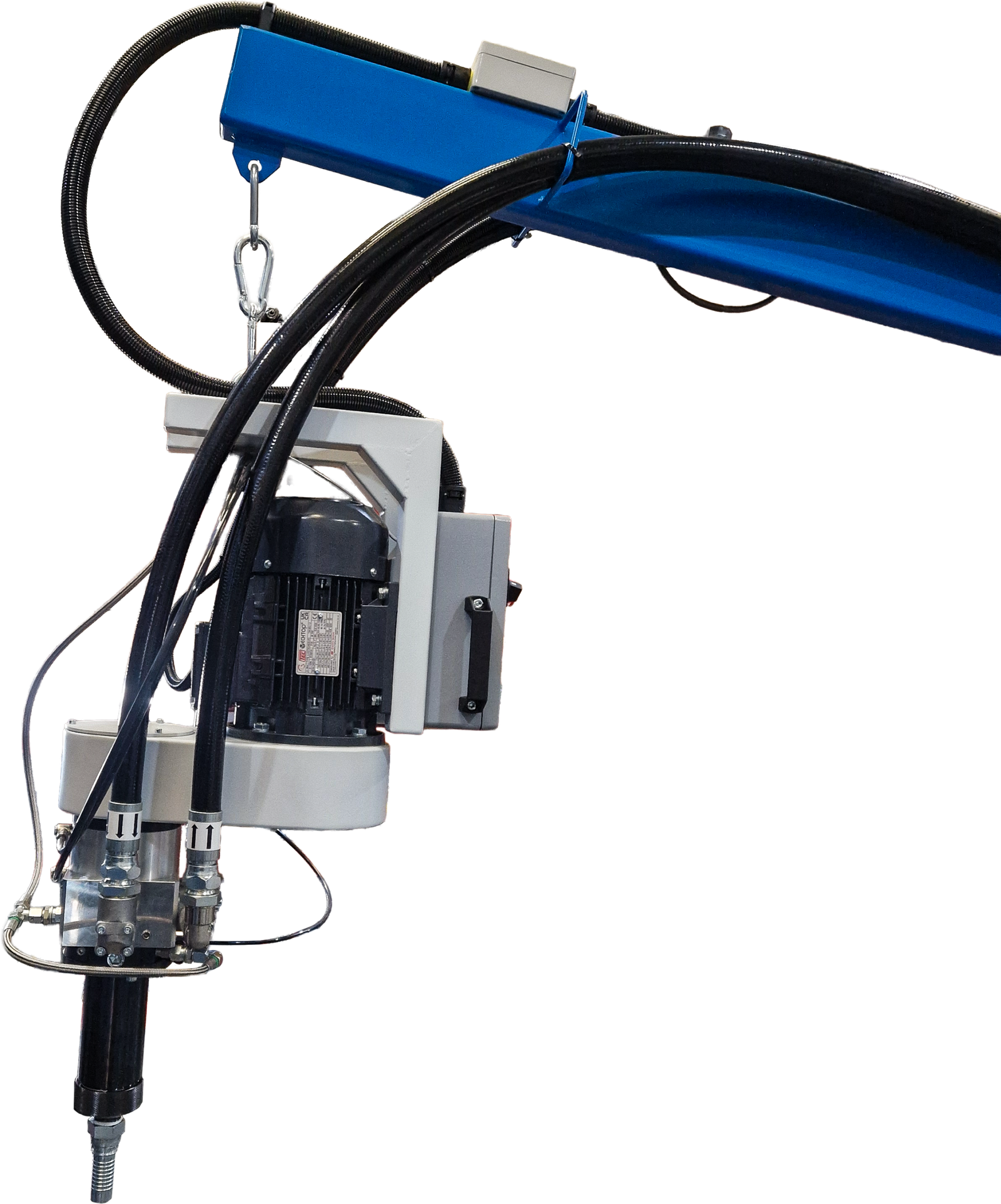

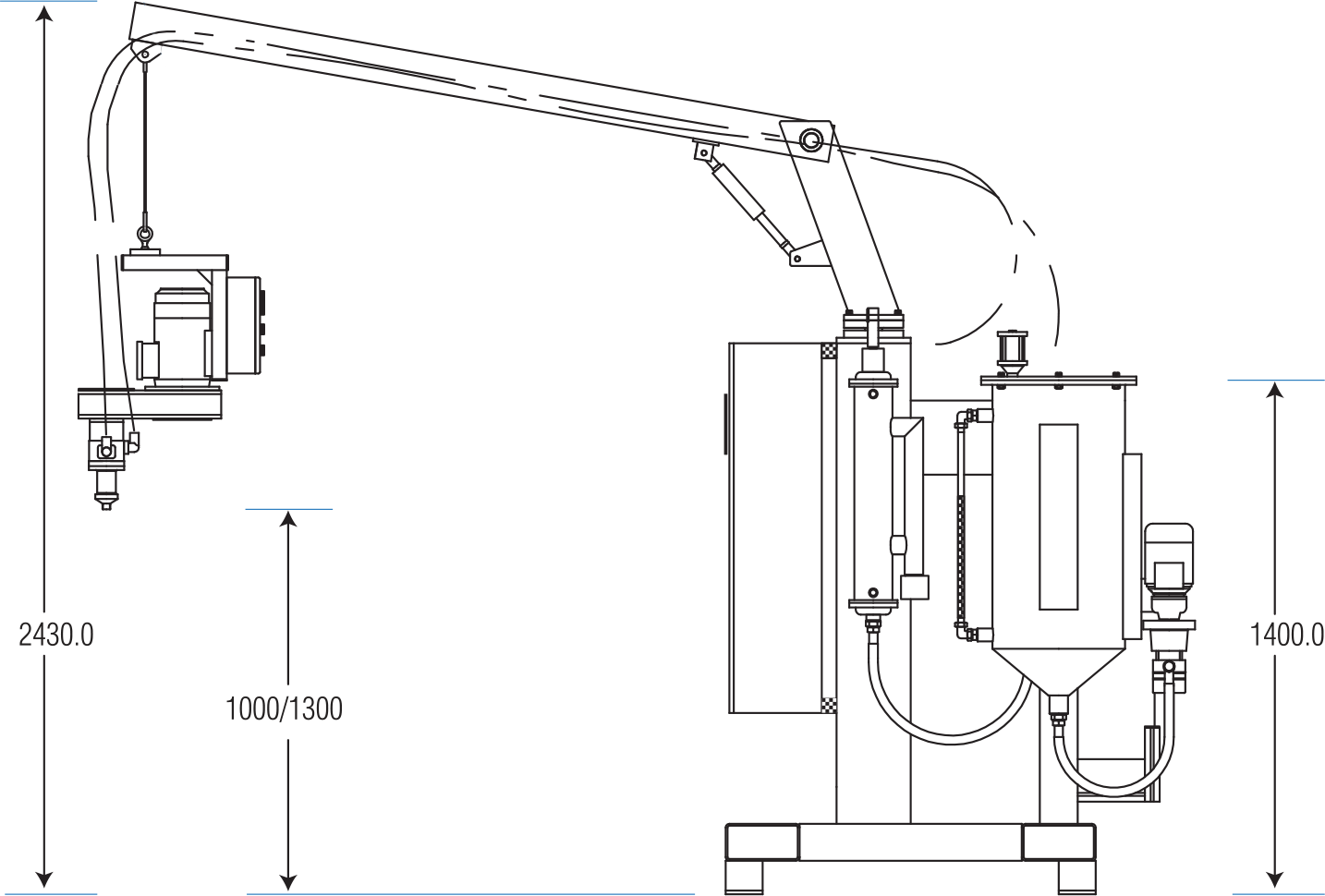

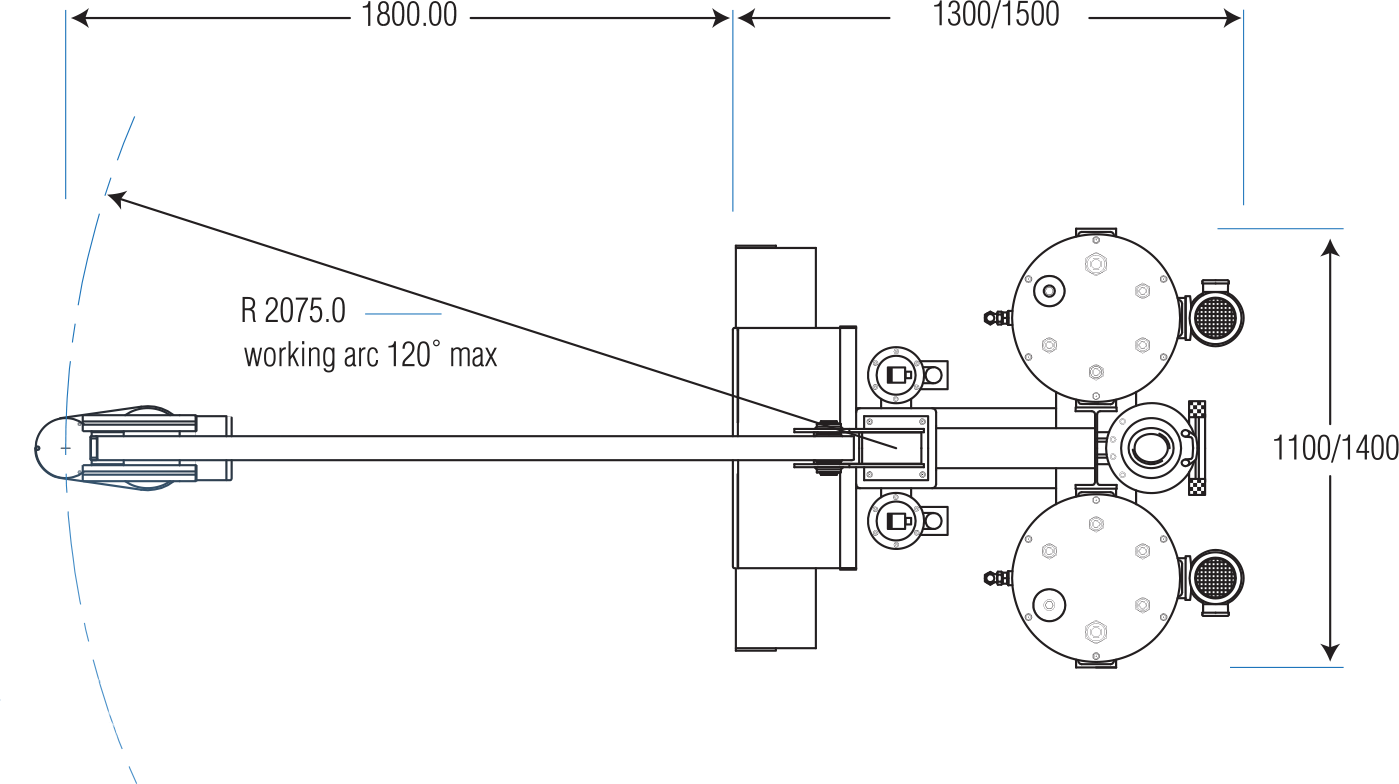

04. Boom Balance Arrangement

The Rim-Mix standard mix head support is by boom balance; alternatives are available depending on customer requirements.

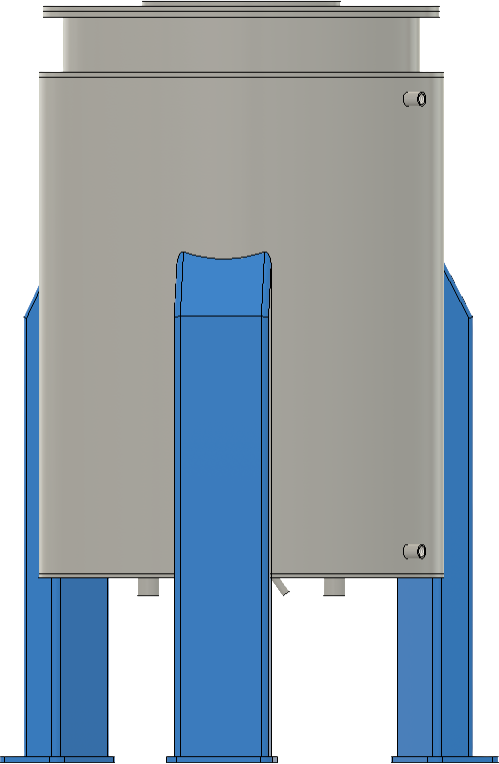

05. Chemical Component Vessels

Silica gel breather on isocyanate and polyol tanks reduces moisture ingress. Standard fittings for
optional equipment, including a capacitance level probe and an agitator. Each tank is flanged and fitted with a removable lid for manual loading.

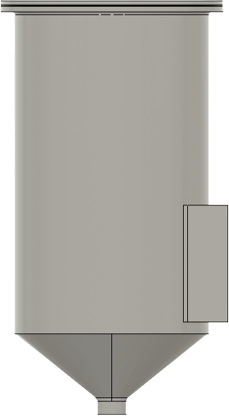

100L

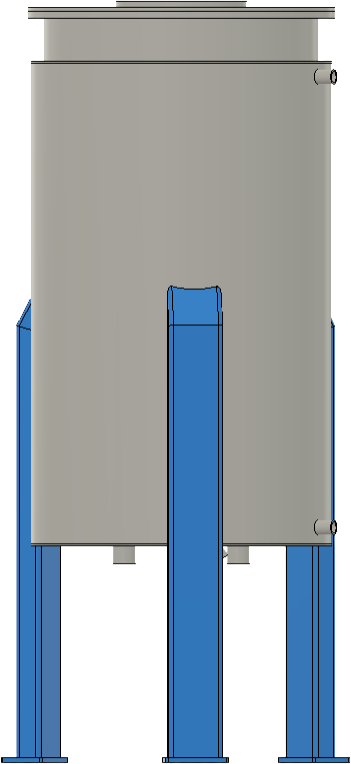

250L

500L

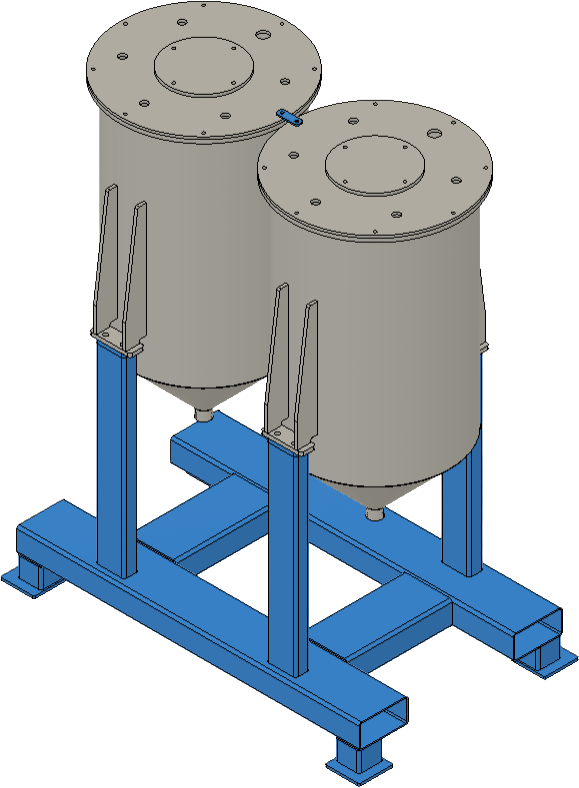

Framed

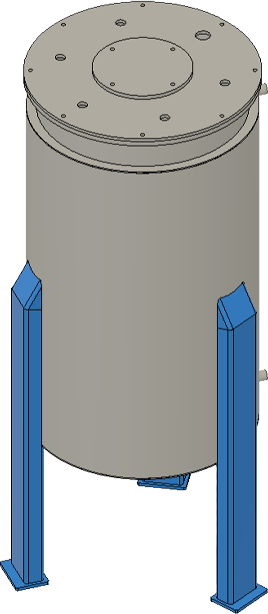

Stand Alone

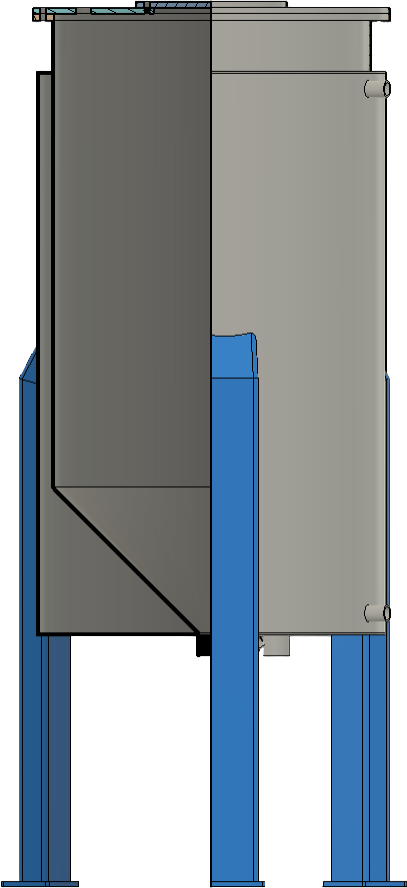

Jacketed

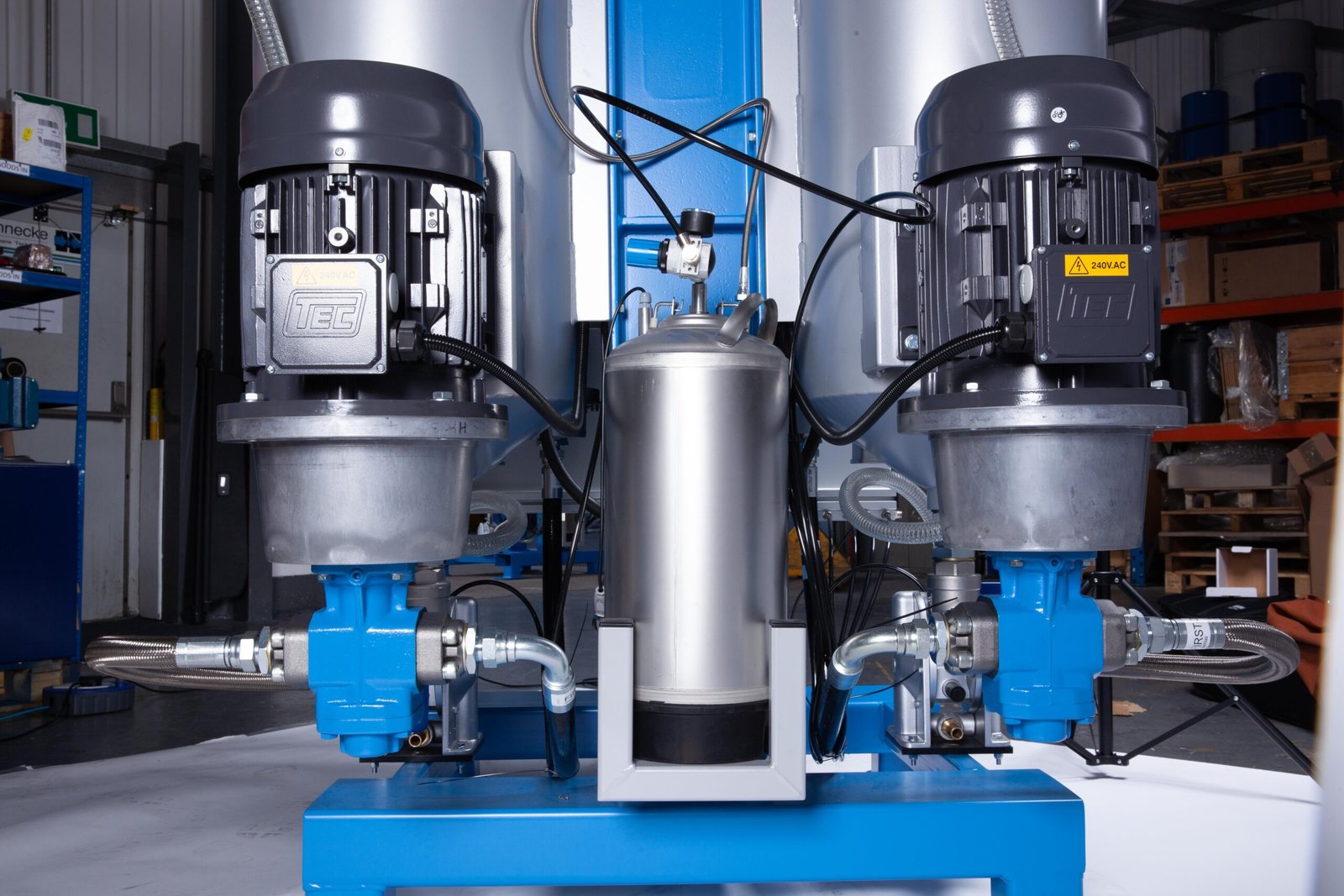

06. Pump Metering Group

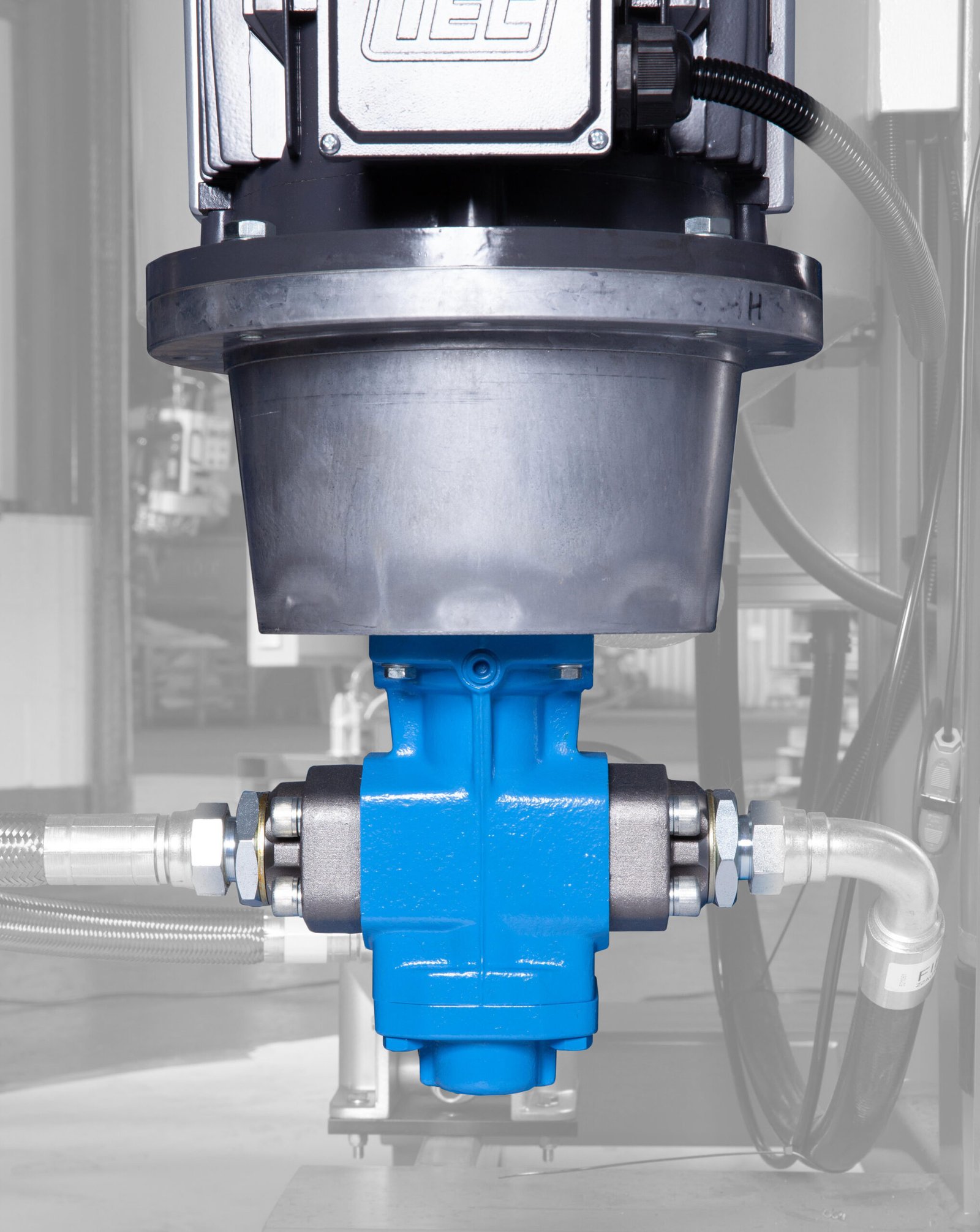

Accurate component metering by a high-precision volumetric gear pump with Viton double rotary
shaft seal. Maximum working pressure 15bar. Output adjusted by a variable speed inverter, monitoring and controlling the pump. Chemical component ratio variation 1:4 to 4:1 via the inverter.

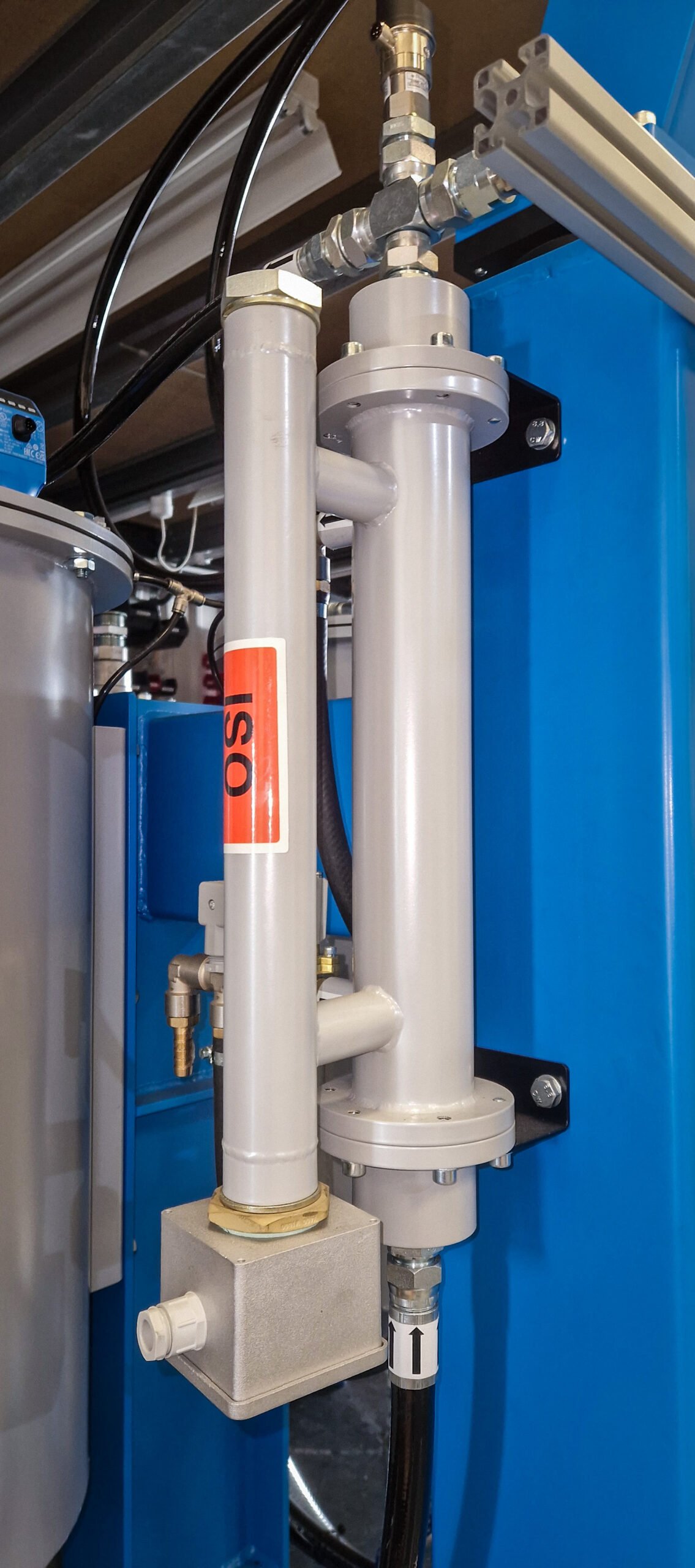

07. Temperature Conditioning

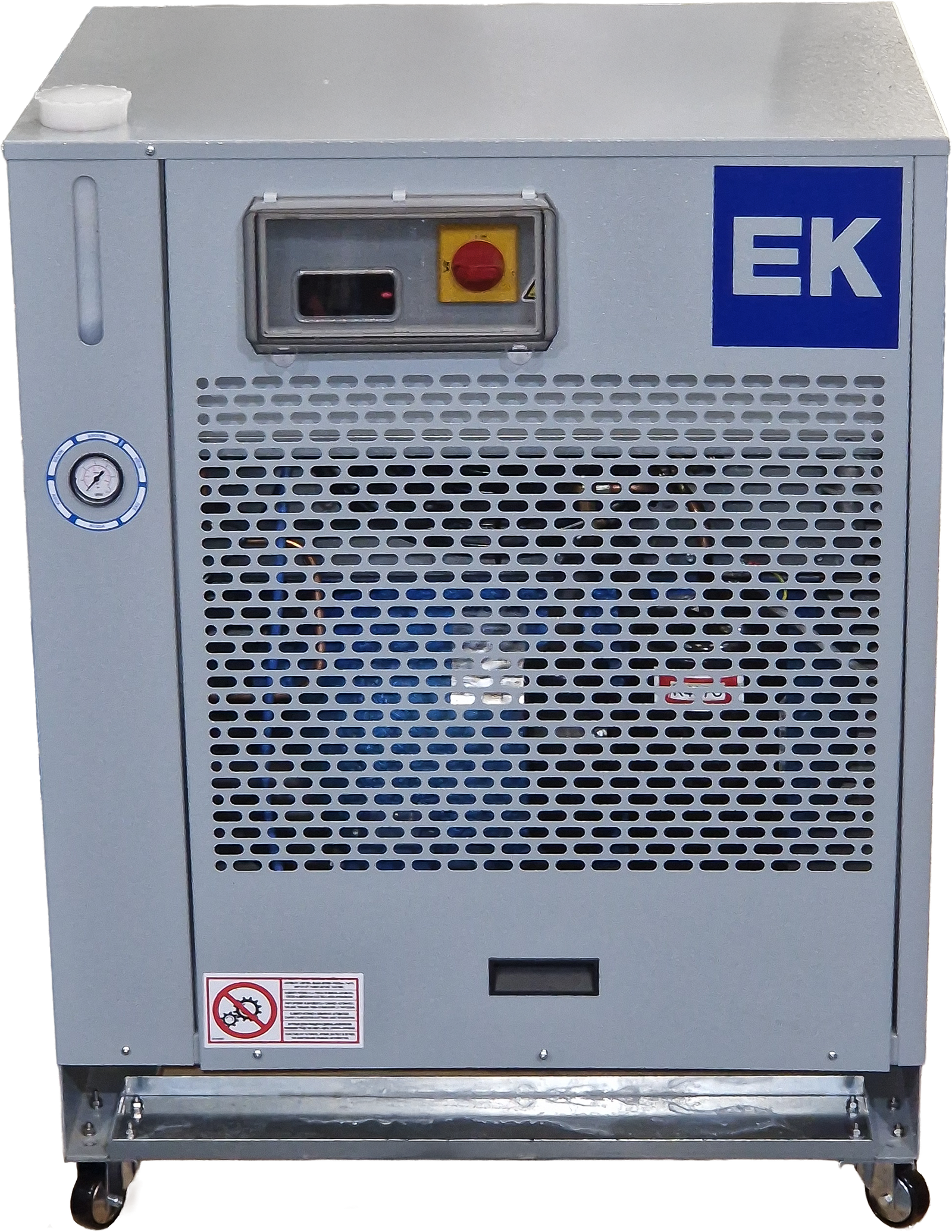

Steel tube nest heat exchangers are standard on the Rim-Mix range, with an optional chilling unit available to maintain chemical component temperatures, ensuring optimal viscosity and consistent product quality.

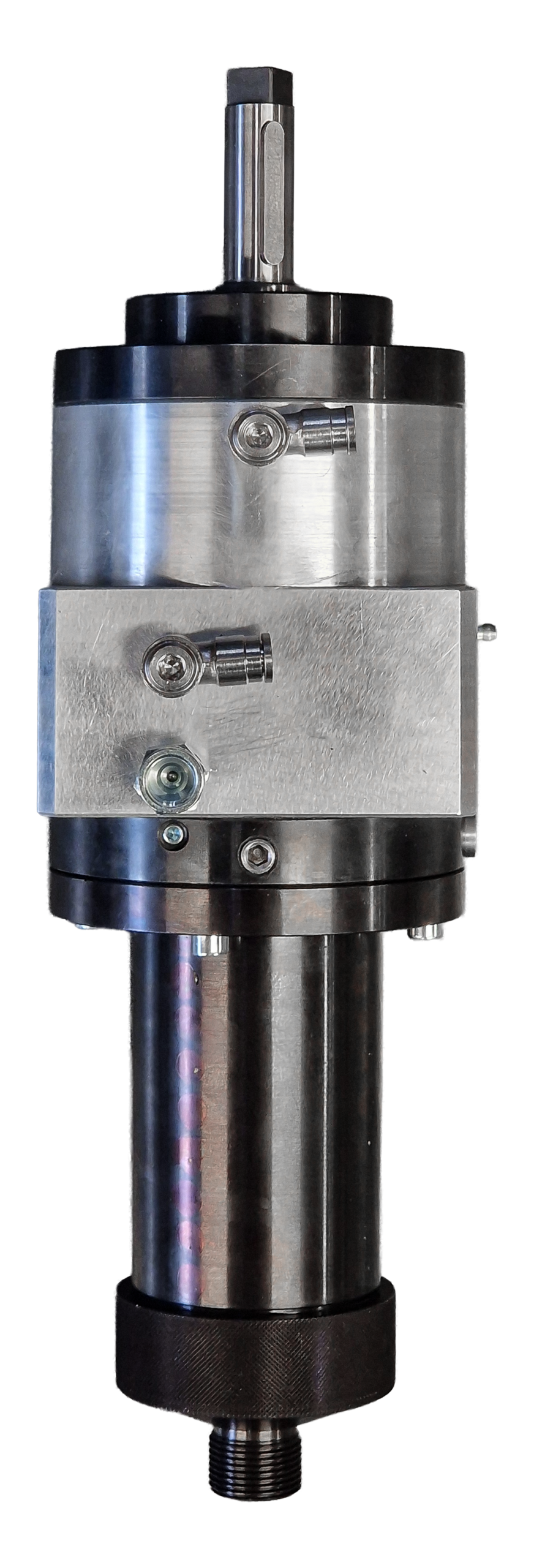

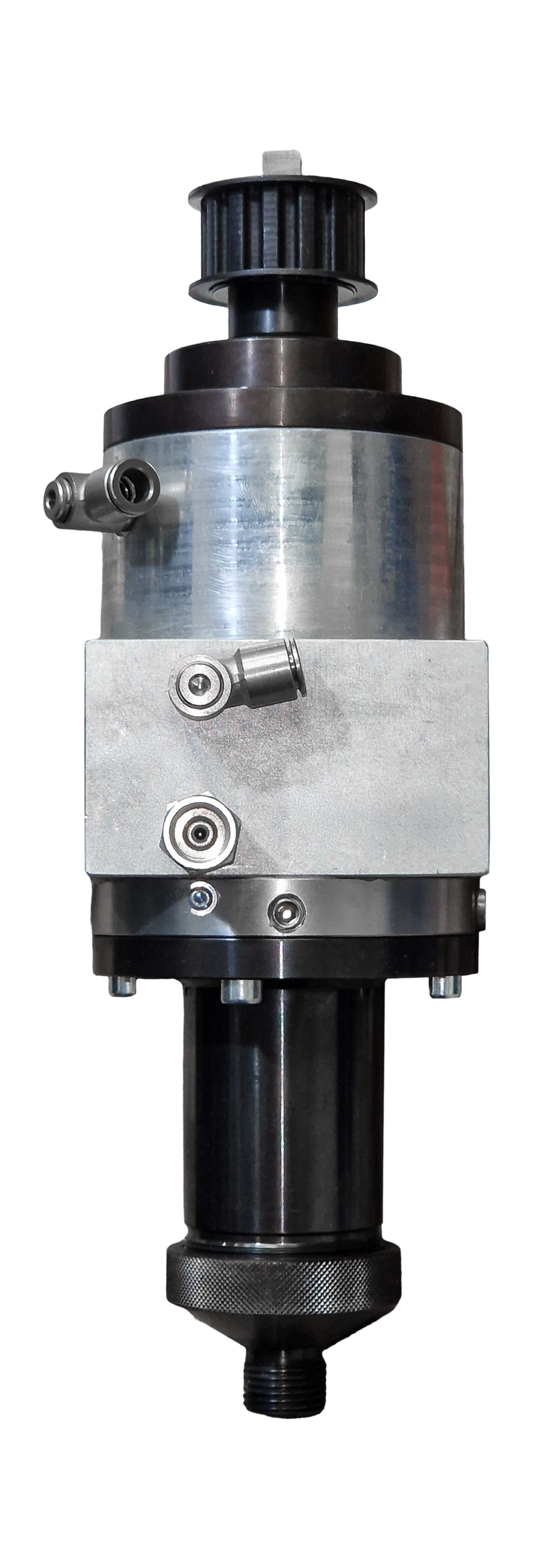

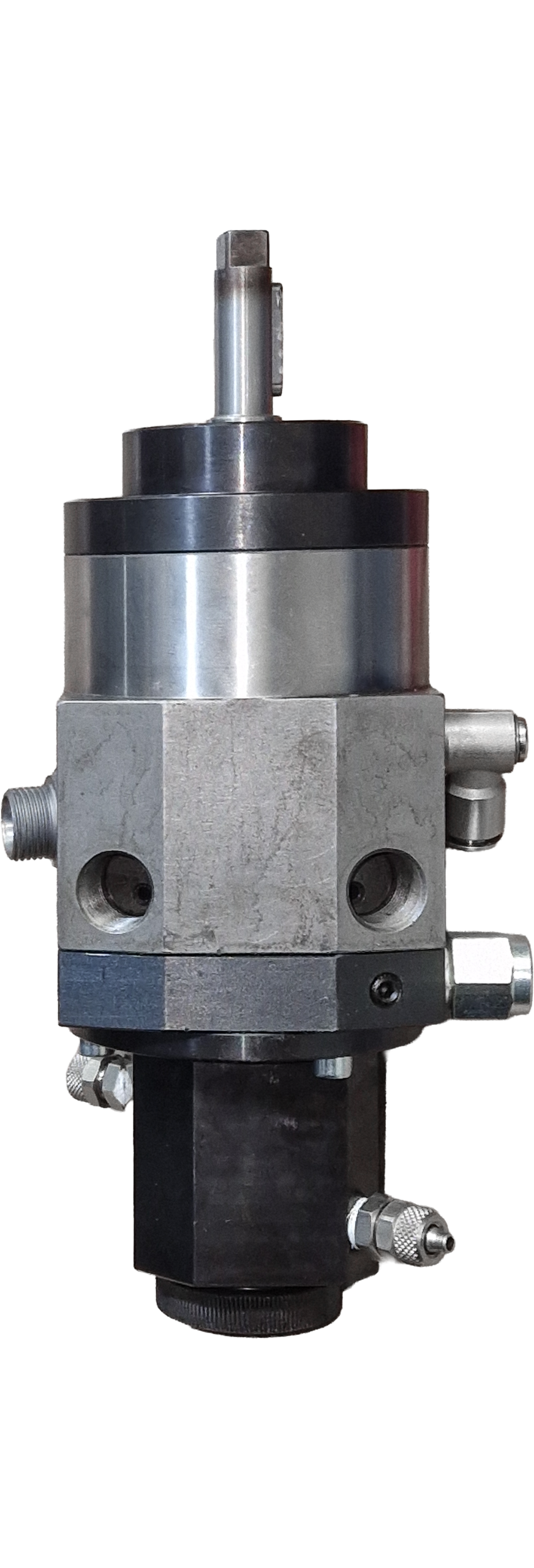

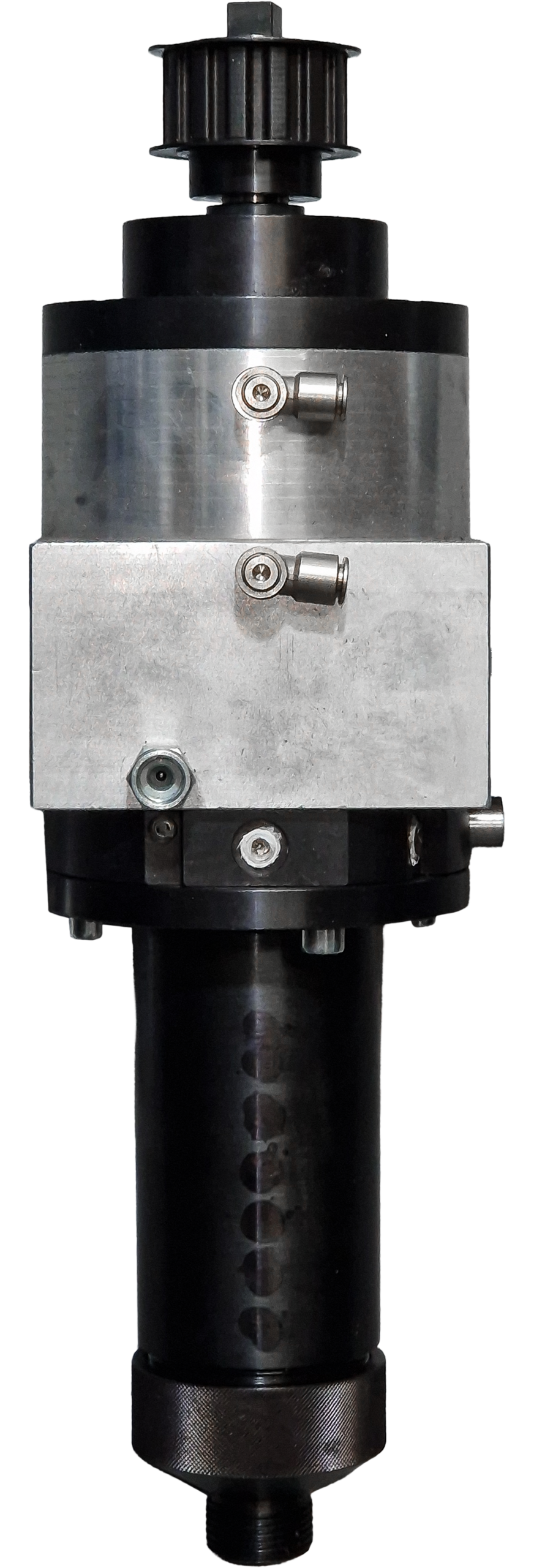

08. Dispensing Head

The core of the system

A mix head of simple robust design provides the operator with a rapid switch from recycle to pour. The ability to adjust pressure directly at the mix head ensures quality mixing without surge. The D Series of multi-component mix heads are available with mechanical mixers of a variety of designs and is specified depending on process material.

Mixer Range

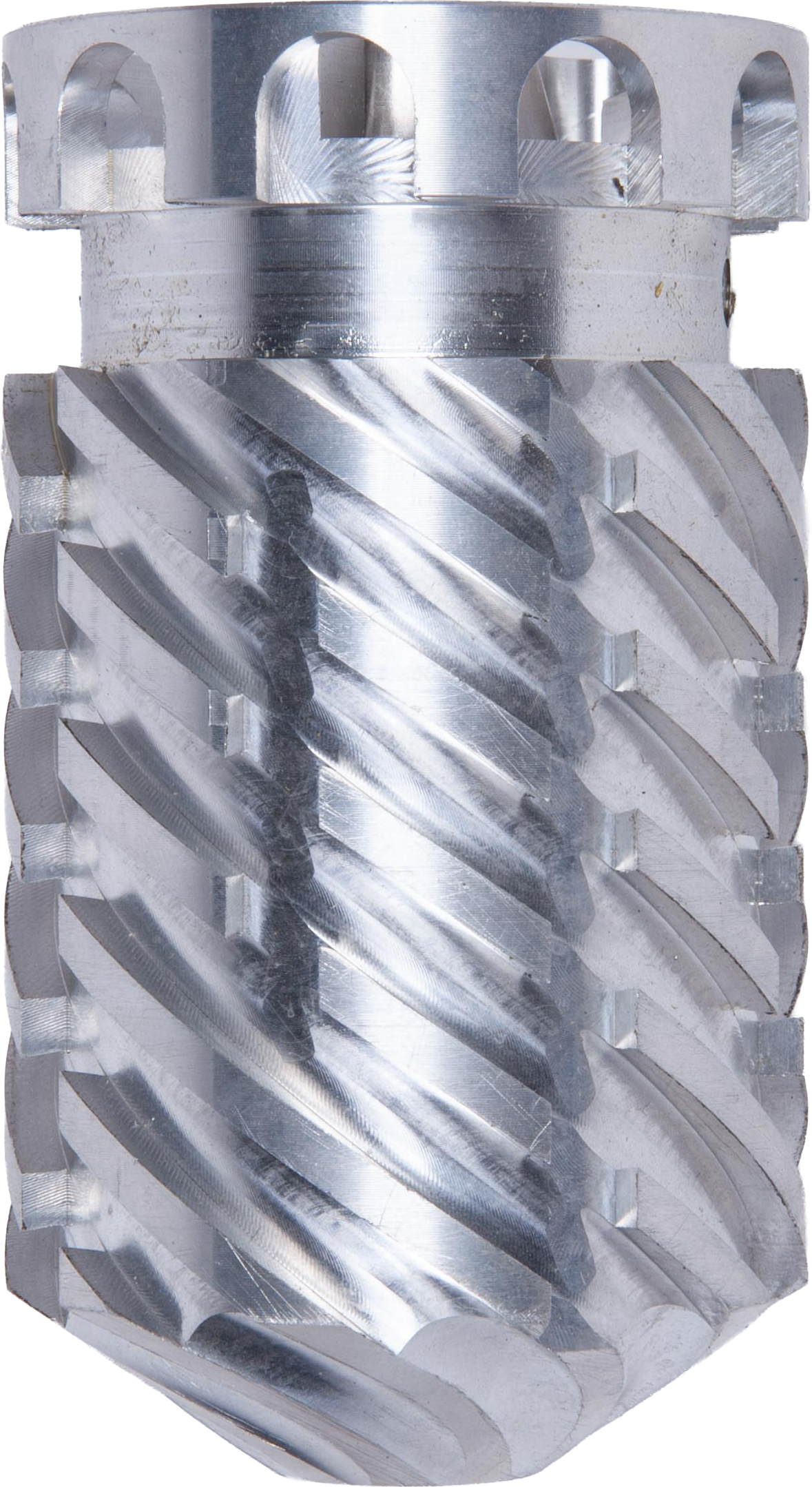

Helicoil

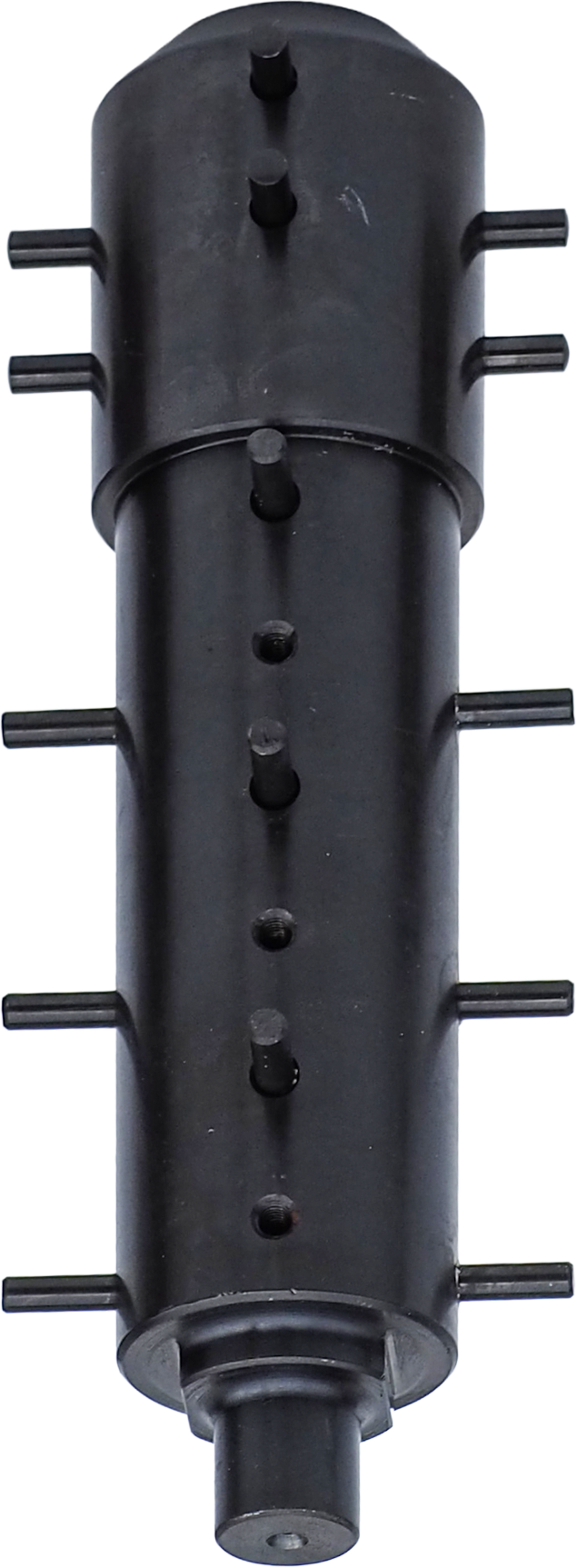

Pin

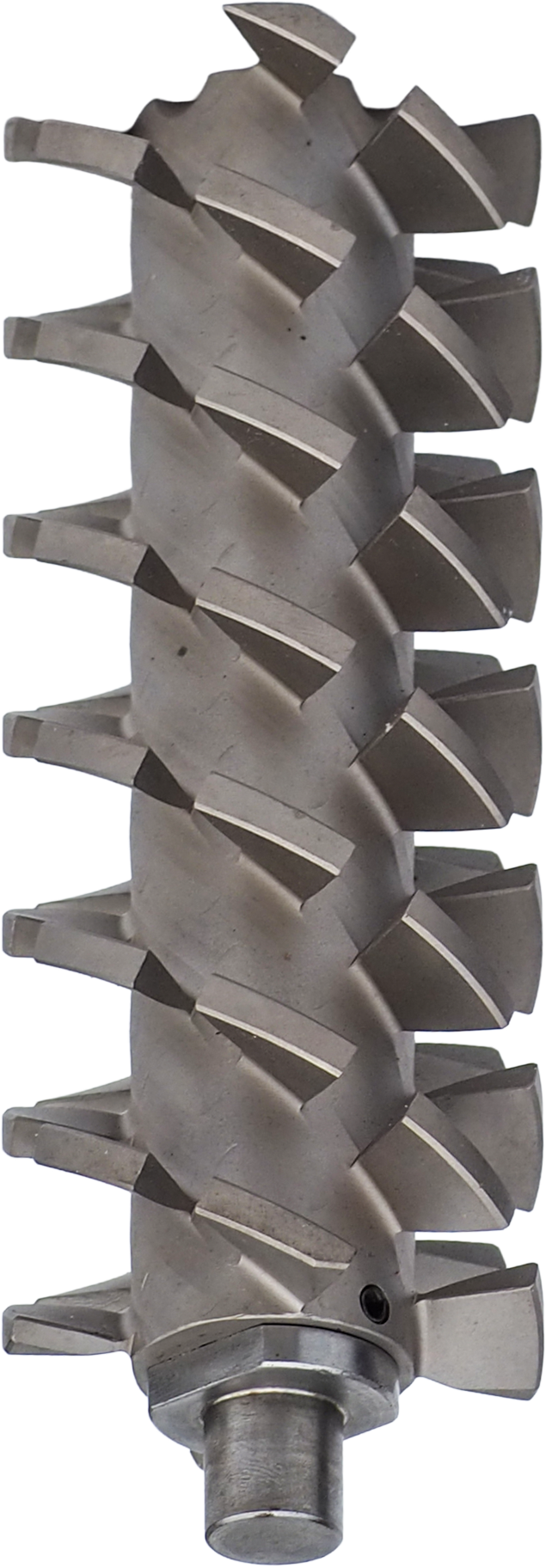

Bladed

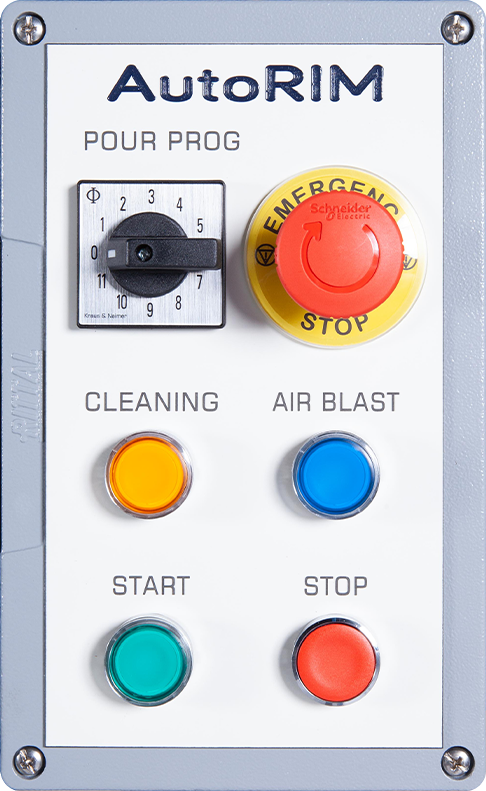

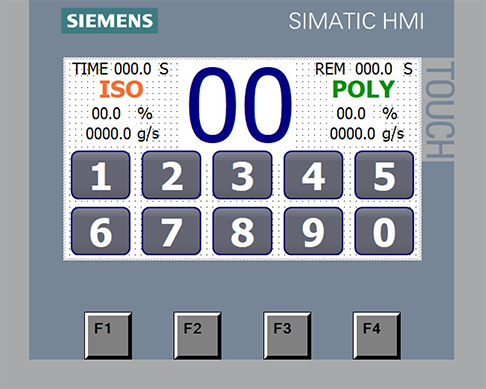

09. Operator Interface Panel

The operator interface panel includes manual air blast, emergency stop and programme selector enabling step-by-step programming at independent outputs and ratios of polyol to isocyanate.

Standard

11-Programme Quick Switch

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Optional

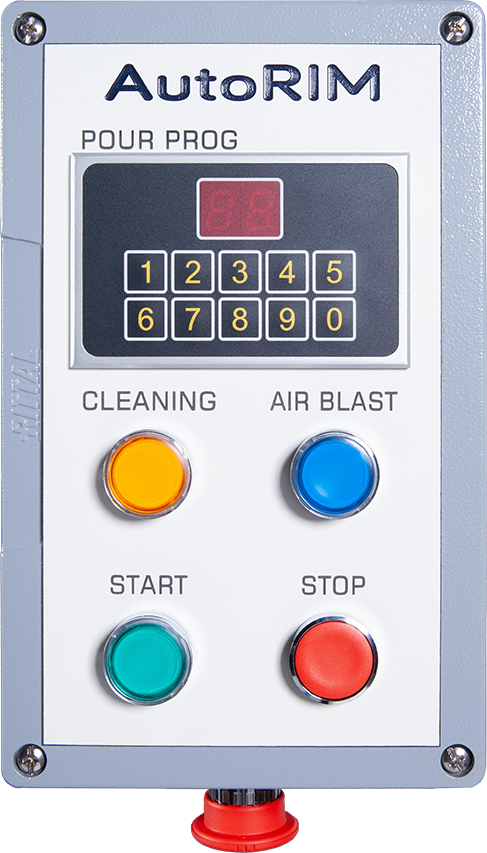

99-Programme

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Optional

99-Programme Touchscreen

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

10. Digital Reading

Standard

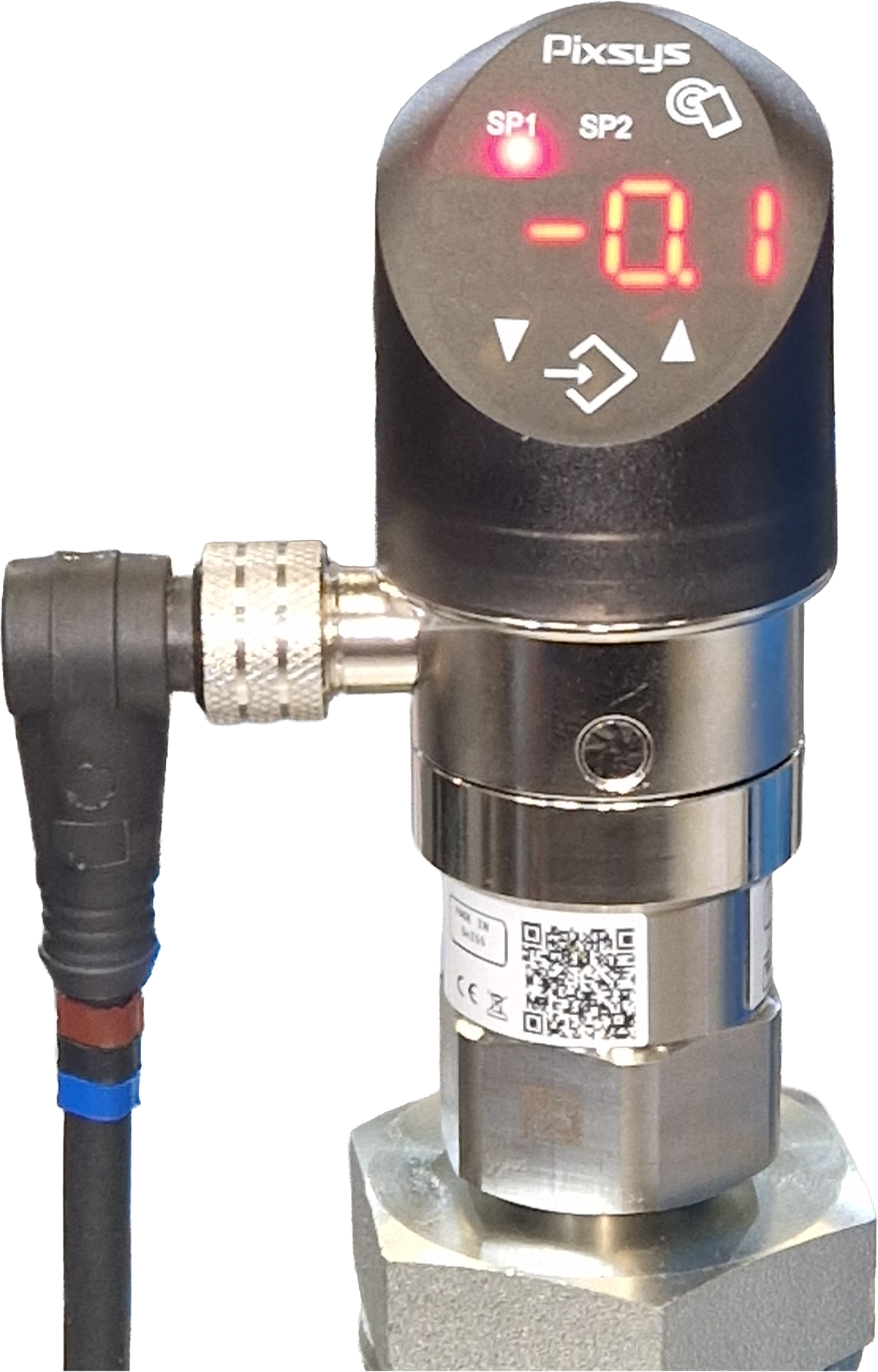

Pressure Gauges

Digital pressure gauge for visual display of working pressure, complete with 2-point contact (high pressure – minimum pressure) for added safety, fitted to both isocyanate and polyol metering lines to prevent over-pressure situations.

Standard

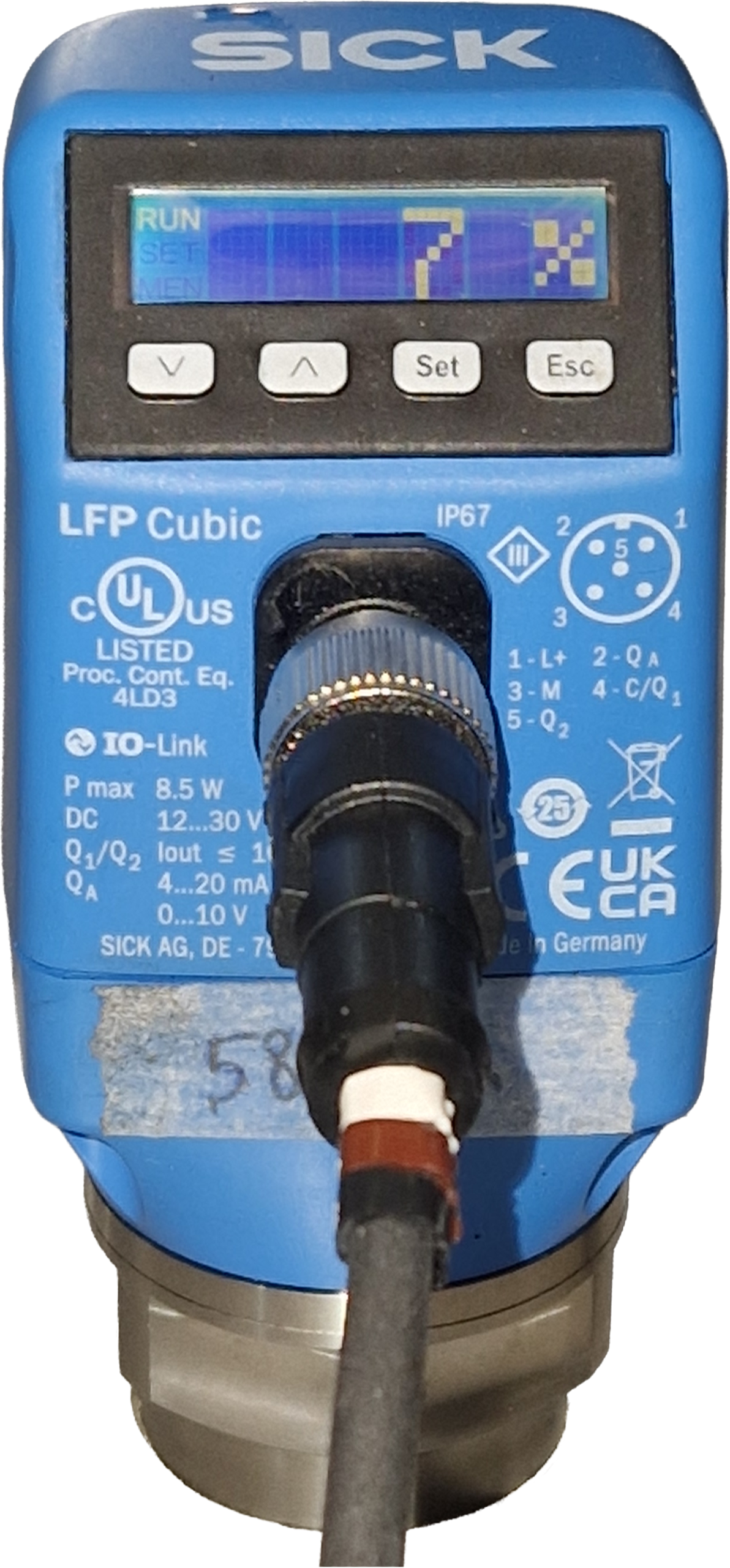

Level Sensors

Liquid level sensor for continuous monitoring of tank contents, providing an accurate visual indication of material levels. Fitted to the system to ensure a consistent supply to the metering lines and prevent low-level or overfill conditions.

Standard

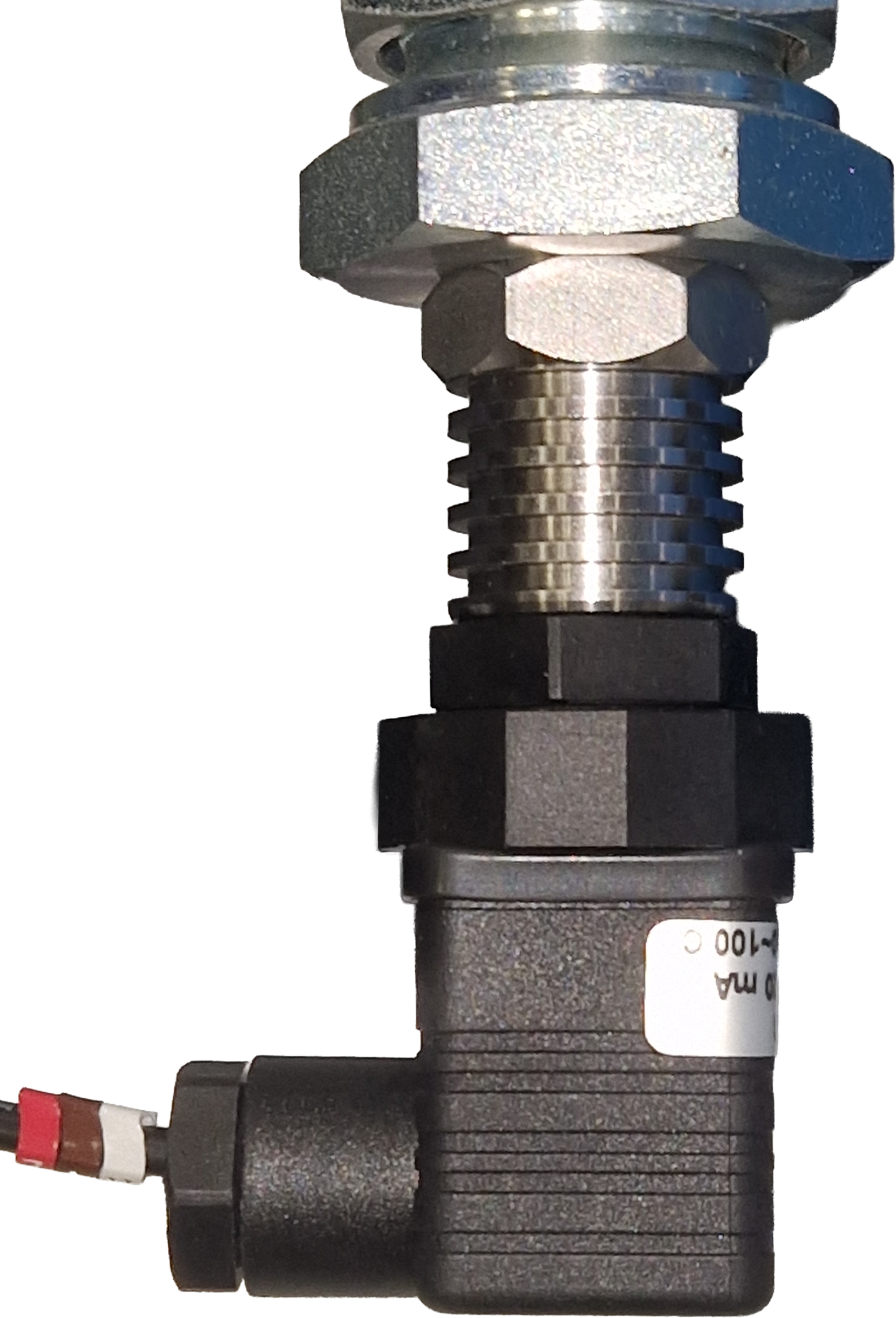

Temperature Sensors

Liquid temperature sensor for continuous monitoring of process temperature, providing reliable measurement to maintain optimal material conditions. Fitted to ensure stable operation and prevent temperature-related process deviations.

11. Electrical Control System

Standard

Siemens S7 series PLC

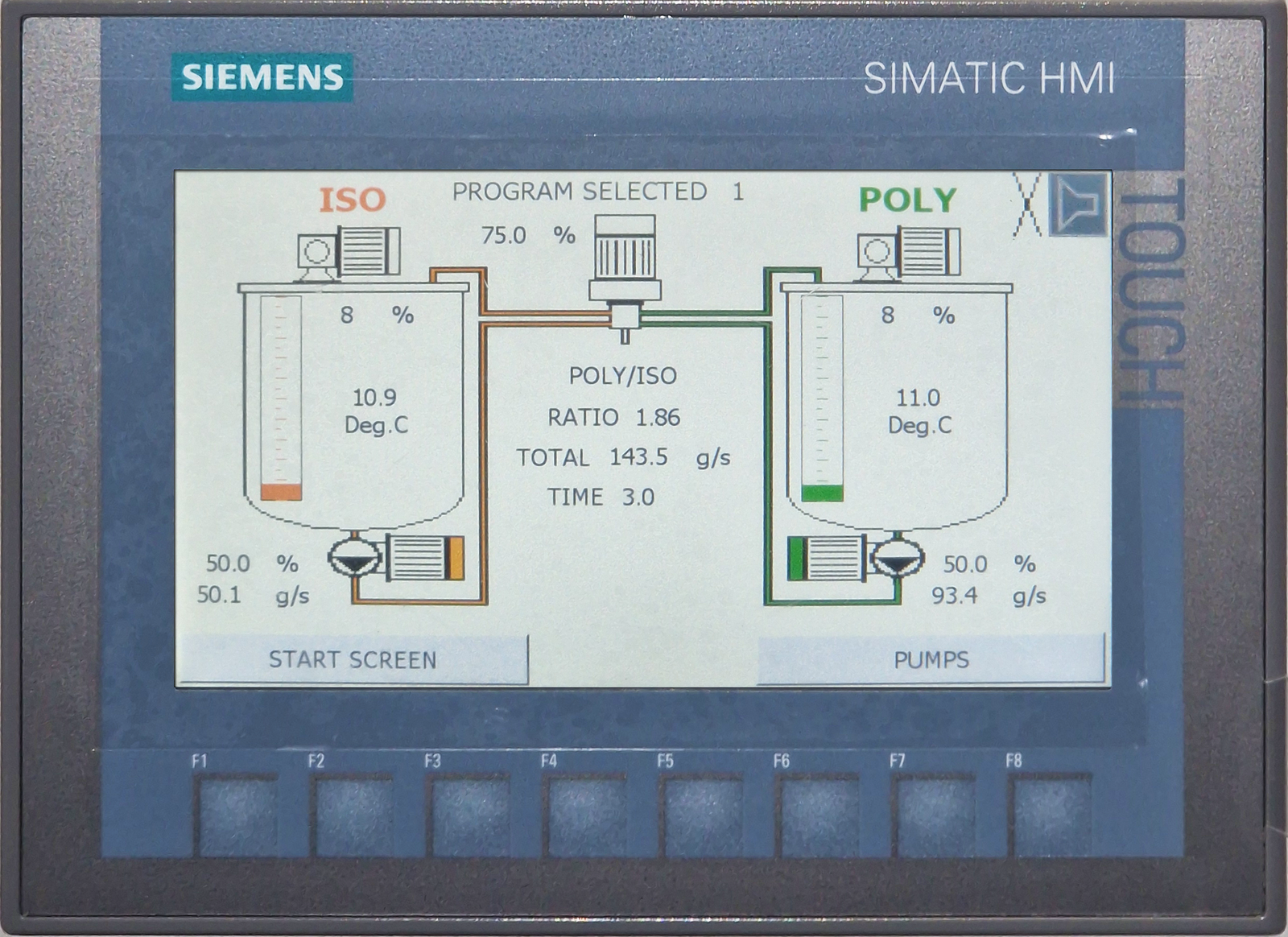

Siemens S7 series PLC with colour HMI touchscreen for clear visual display of all machine and process parameters. The screen provides real-time monitoring of program details, motor speeds, chemical levels, and temperatures, along with ratio control, shot time, and system status. Designed to give operators full visibility and precise control of the process, ensuring consistent performance and safe operation.

12. Cleaning

Standard

Solvent Circuit

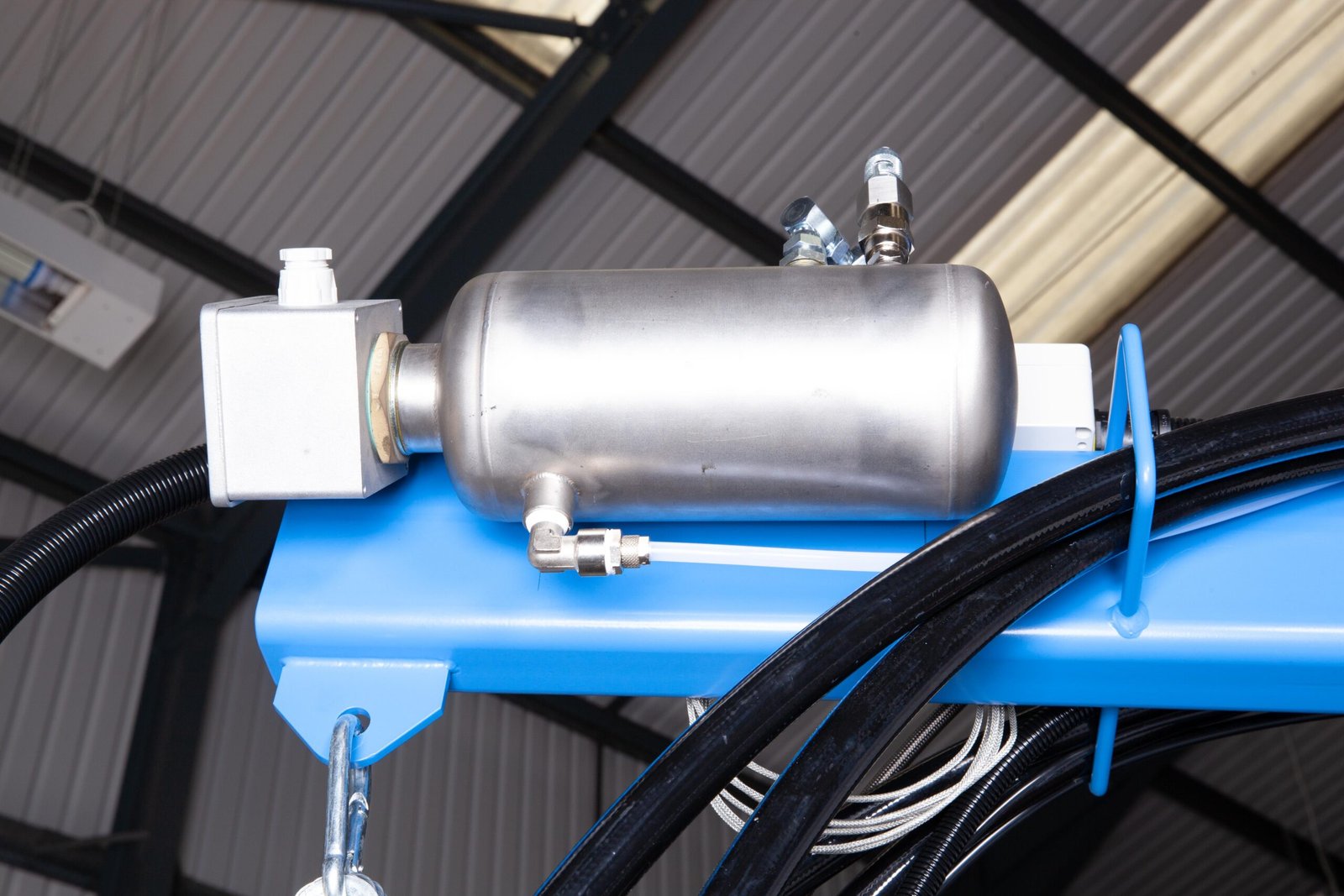

Cleaning is an essential part of machine function once the reaction has occurred. A pressurised stainless steel 18 litre tank ensures solvent delivery by a dedicated steel braid hose fitted with a sliding exhaust valve, a manual decompression valve and a minimum level alarm.

Optional

Hot Water Wash

If required, a hot water wash system can be offered as a more environmentally friendly alternative to chemical cleaning agents such as methylene chloride and similar solvents. This provides an effective cleaning solution while reducing reliance on harsh chemicals and maintaining reliable system performance.

13. Auto Chemical Loading

Standard

Automatic Chemical Loading

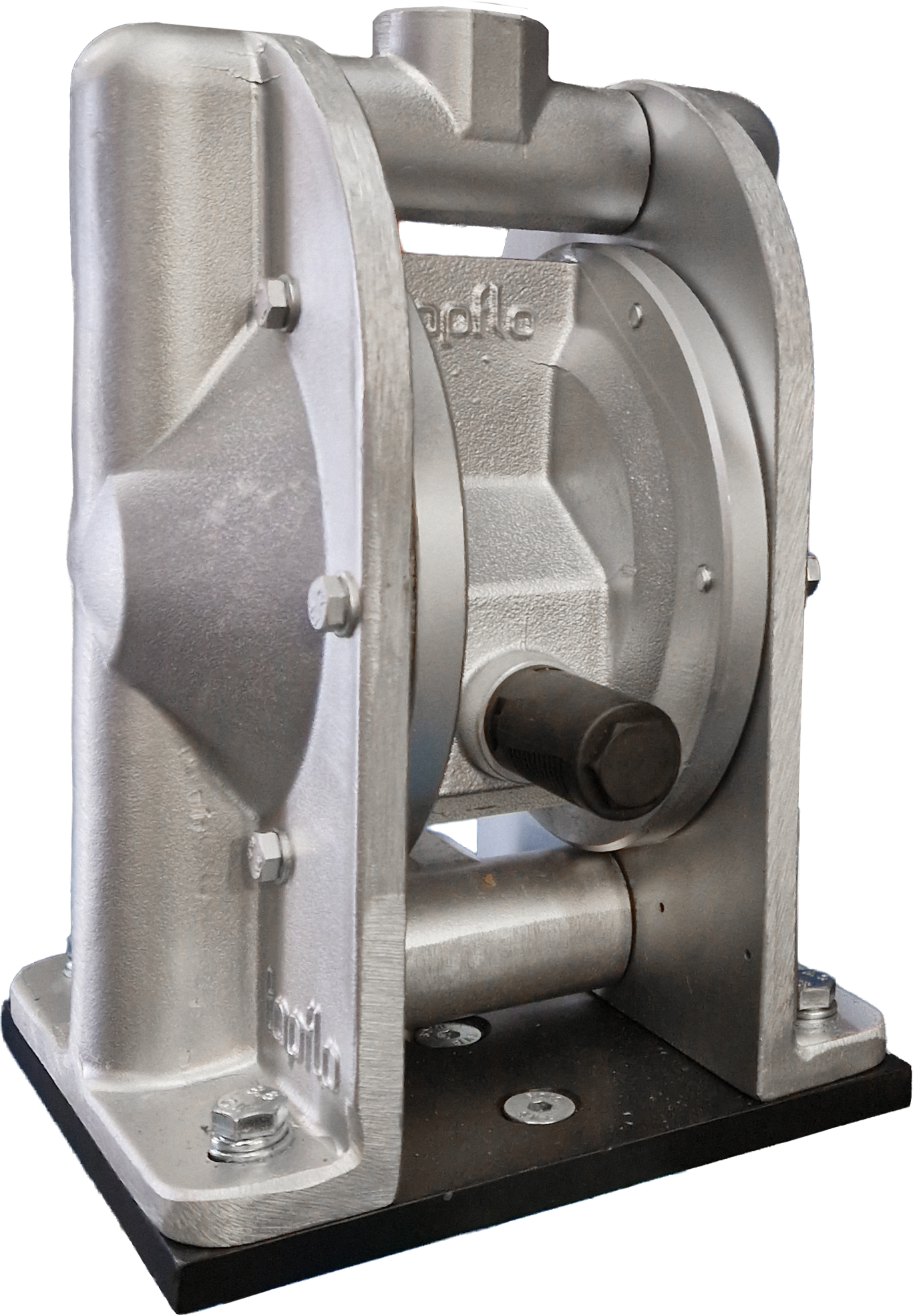

Automatic chemical loading from drums or IBCs to the machine tank using a double-diaphragm pump. The system maintains the preset tank level at all times, ensuring uninterrupted operation and preventing the risk of running out of material.

Optional

Solvent Dispensing

Delivers cleaning solvent directly from drums or barrels to the point of use. Eliminates manual tank filling, ensures consistent flow, and simplifies chemical handling for safer, uninterrupted operation.

14. Customisation & Upgrades

Core Equipment

  • Agitator on component tanks
  • Chemical transfer pumps
  • Pneumatic loading valves
  • Water chill unit
  • Jacketed insulated tanks
  • Heated, jacketed tanks from 60–250 litre capacity

Mixing & Control

  • Variable speed mixer motor
  • Colour dosing unit
  • Volumetric flow meter(s)
  • Suction side filter(s)
  • 99 pouring programmes
  • 3rd component stream
  • Magnetic driving coupling for motor

Services / Operational

  • Component tanks available up to 250 litres
  • Hot water cleaning system
  • Data logging
  • Choice of colour
  • Motor force vents

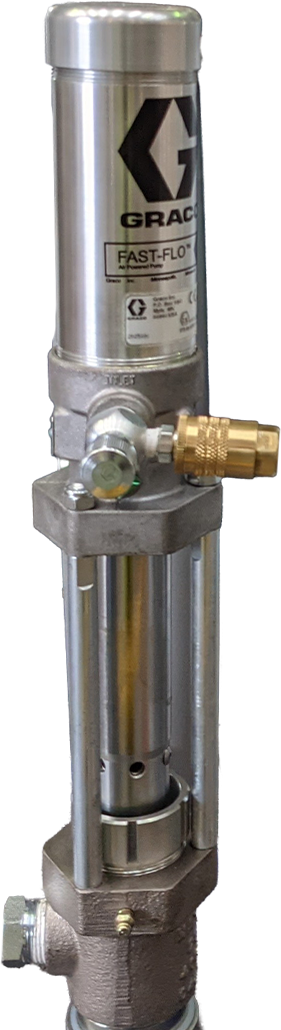

  • Air-Operated Piston Transfer Pump
  • Fixed price annual maintenance package

15. Technical Specifications

Services required

Electrical power 3 phase /415 volt /50Hz dry, clean,
compressed air at 8 -10bar pressure cooling water
either from mains or free standing water chill unit.

Precision Low-Pressure Mixing Systems

High-performance Rim-MIX machinery for accurate, reliable PU and PIR processing.
